Configure AWS PrivateLink in ScyllaDB Cloud¶
This guide explains how to create an AWS PrivateLink Endpoint Service for a ScyllaDB Cloud cluster. After completing this guide, you will have a Service Name to use when creating the VPC endpoint in your AWS account.
Private Connectivity is configured per datacenter. If your cluster spans multiple datacenters, configure a separate private connection for each one.
Prerequisites¶
ScyllaDB Cloud account with the Premium plan.
An AWS cluster (ScyllaDB-hosted or BYOA) created with the Private Connection network type enabled.
Step 1: Create the Cluster¶

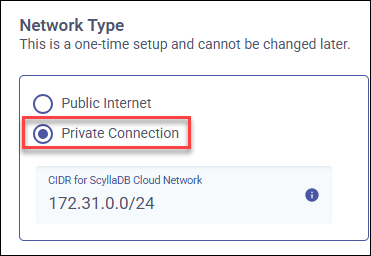

When creating a new cluster, select Network Type> Private Connection.
Note
Private Connectivity cannot be configured for existing clusters that were created with the Public Internet option enabled.
Step 2: Set Up the PrivateLink Connection¶
Once the cluster is launched, go to the Connections tab and click New Connection.
Select PrivateLink.

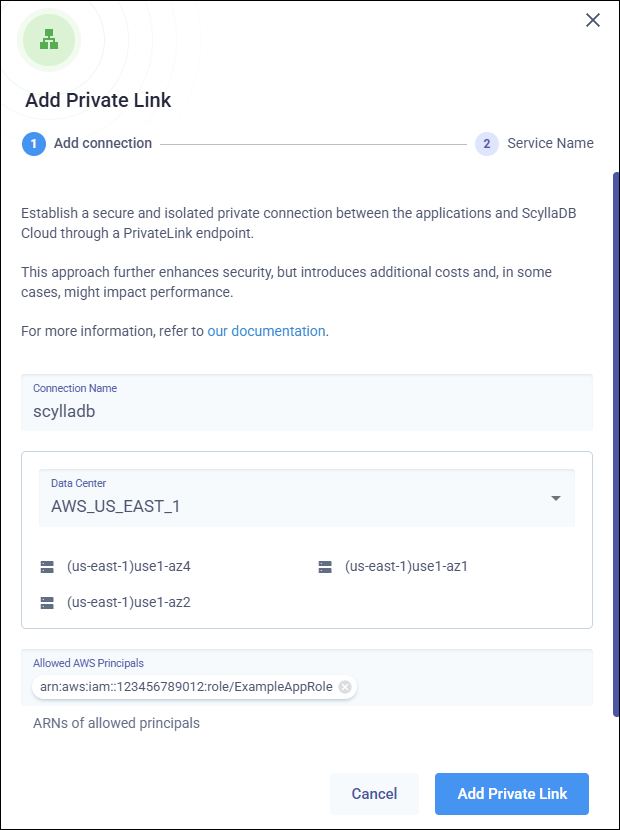

Configure the connection:
Connection name — A name to identify the connection.
Data Center — The datacenter for this connection. If your cluster is deployed across multiple datacenters, configure a separate private connection for each datacenter.
Allowed AWS Principals — AWS ARNs (accounts, roles, or users) authorized to create VPC endpoints to this service:
AWS account (all principals)
arn:aws:iam::<account_id>:rootIAM role
arn:aws:iam::<account_id>:role/<role_name>IAM user
arn:aws:iam::<account_id>:user/<user_name>All principals in all AWS accounts
*
Click Add Private Link to create the connection. This can take 10–15 minutes. The connection status will change from Processing to Active once ready, or Error if something went wrong.
Step 3: Retrieve the Service Name¶
Once the connection is active, copy and save the Service Name. You will need it when creating the endpoint in your AWS account.

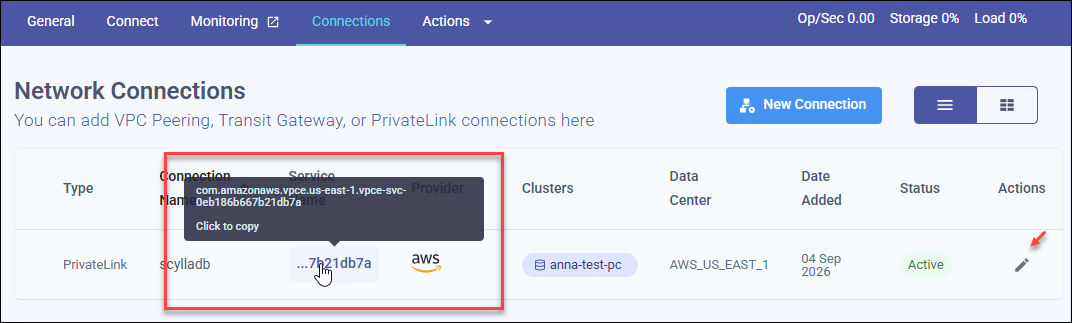

To copy the Service Name, click it in the Connections tab:

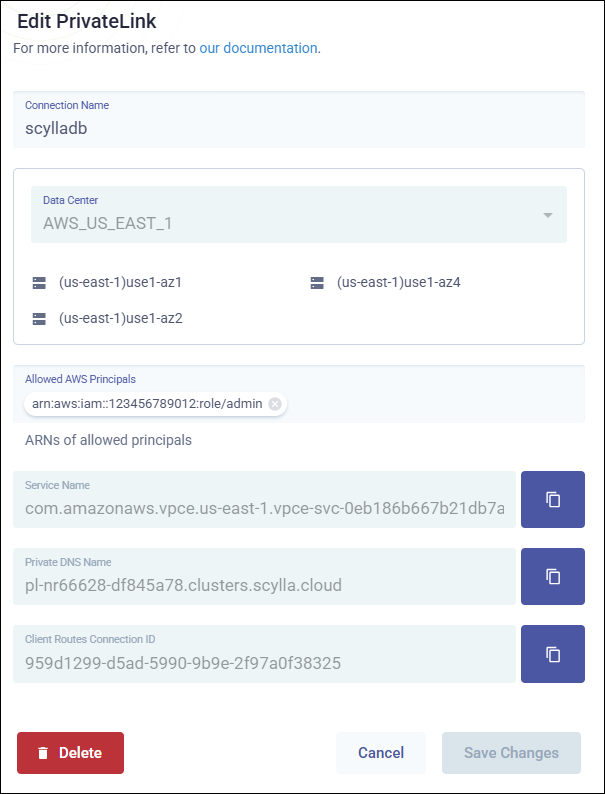

To view all connection details, click the edit icon in the Actions column. The Edit PrivateLink dialog will display:
Service Name - Required when you create the Interface VPC endpoint in AWS.
Private DNS Name - The DNS name applications use to connect to the database through AWS PrivateLink.
Client Routes Connection ID - The unique ID that a compatible ScyllaDB driver uses to retrieve connectivity information for this private connection.
Now you can connect to the service. See the Connect Your AWS VPC to ScyllaDB Cloud guide for instructions.
